The electric elevator and rudder trim is a replacement for your Seabee trim system, completely replacing the existing mechanical trim system with electric servos in the horizontal stabilizer and adding rudder trim

Not only does this kit eleiminate a problematic system for the elevator trim and all the associated meantenance it adds a rudder trim.

The new system weighs in at under a pound and is relatively simple to install and even simpler to use.  The hard part about this installation is removing the old trim hardware.

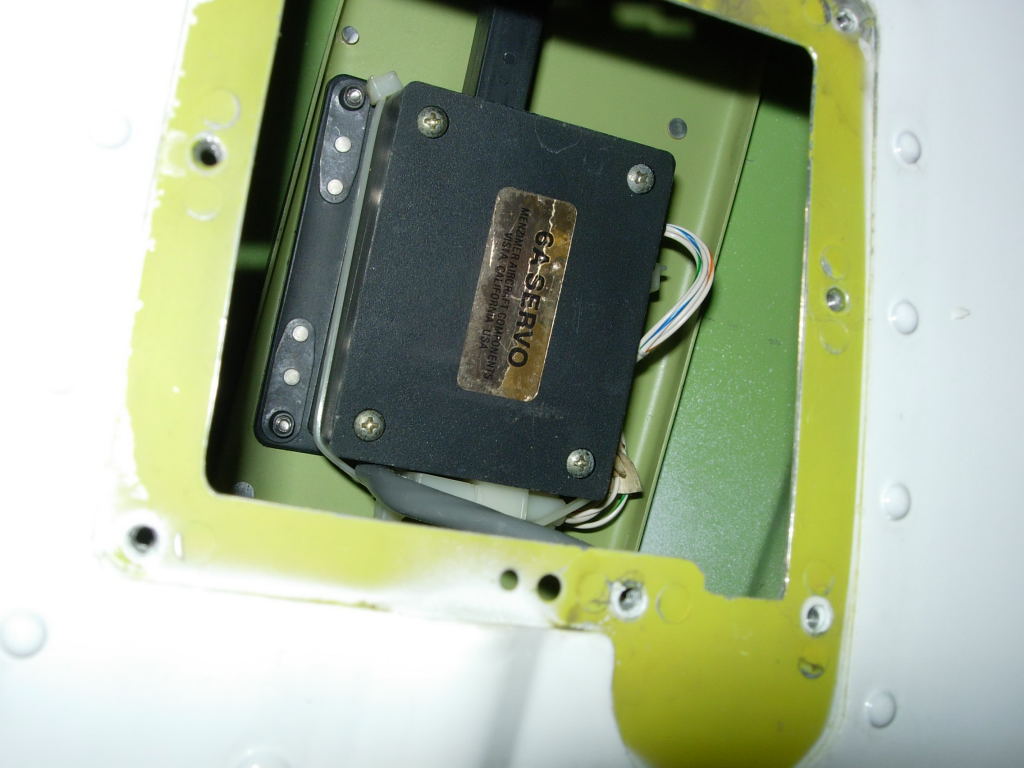

This is a complete replacement for the existing trim system. ·It consists of two electrically actuated server motors for the elevator and one servo for the rudder. ·The entire kit weights approximately one pound and allows for a complete removal of the existing trim system and all components.

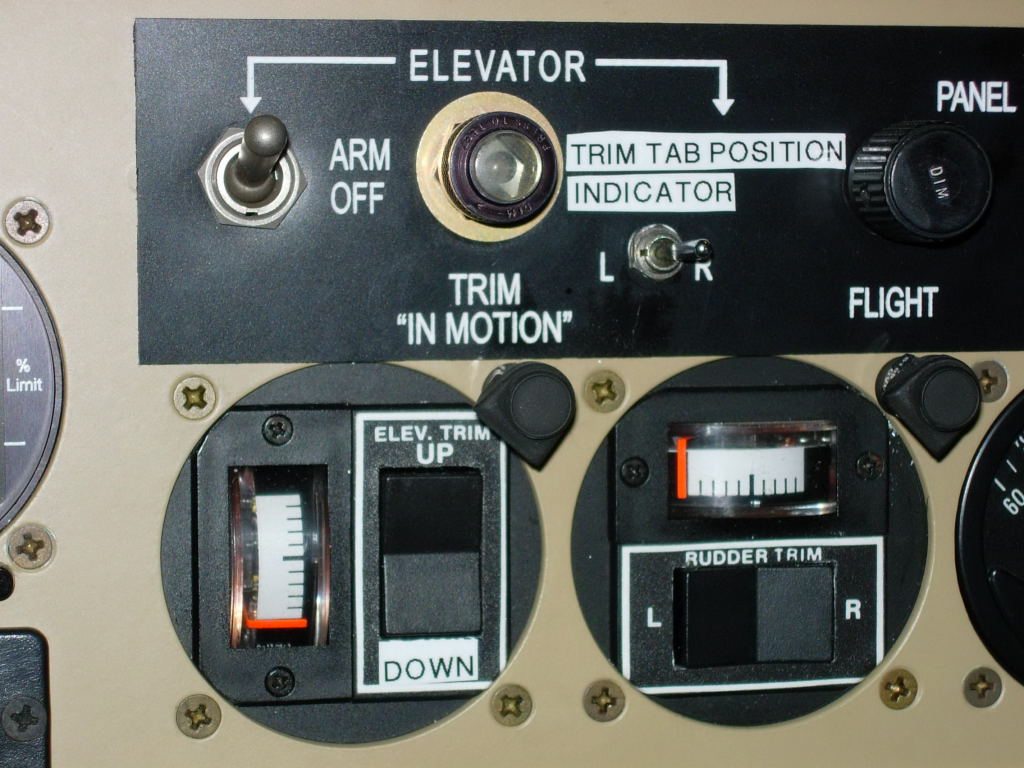

The controls are panel mounted and/or yoke mounted with panel trim position indicators.

Price: $4,995
Availability: 2-4 Weeks



Installation Photos
